SMSL VMV D3R Balanced DAC
By buying this product you get 174 loyalty points
![[GRADE A] ASCILAB C8C Bookshelf Speakers Cardioid 3-way 1x100W + 2x250W Black (Pair)](https://www.audiophonics.fr/71347-thumb_default/ascilab-c8c-black-sba.jpg)

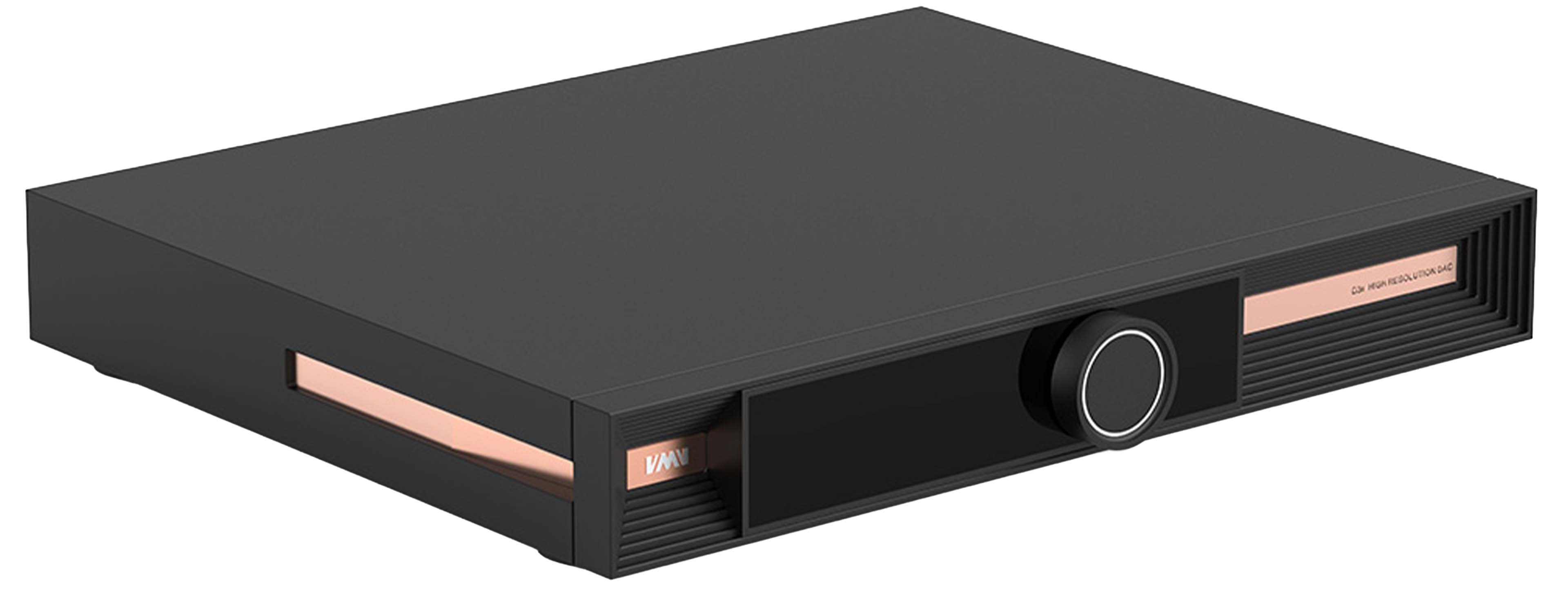

SMSL VMV D3R Balanced DAC 2x ROHM BD34302EKV Bluetooth LDAC 32bit 768kHz DSD512
The SMSL VMV D3R is an ultra high-performance DAC based on audiophile-grade components. For digital-to-analog conversion, it integrates two ROHM BD34302EKV DAC chips for fully balanced signal processing, combined with an XMOS XU316 USB interface supporting streams up to PCM 32bit 768kHz and DSD512. It also features OCXO oscillators and a CK-04 clock circuit for optimal jitter reduction, along with a fully balanced analog volume control preserving signal integrity. Regarding power supply, the SMSL VMV D3R uses two toroidal transformers, each independently powering the digital and analog circuits. In terms of connectivity, it includes Bluetooth with support for AAC, SBC, aptX HD and LDAC codecs, as well as a full range of digital inputs (USB-C/B, I2S via HDMI, coaxial SPDIF, optical Toslink, etc.) and RCA and balanced XLR outputs. Full and intuitive control of the SMSL VMV D3R is achieved via a remote control and an LCD screen located on the front panel.

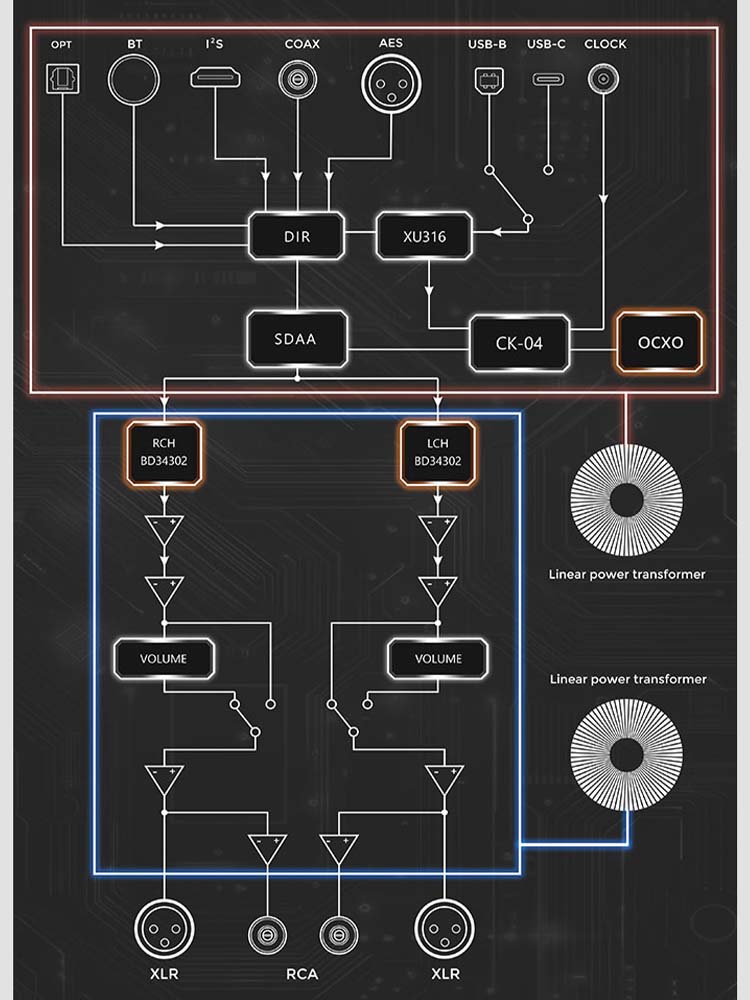

SMSL VMV D3R: Audiophile architecture
The SMSL VMV D3R circuit is built with high-quality components, featuring separate analog and digital processing to prevent interference. Two toroidal transformers provide a stable power supply. The fully symmetrical design helps reduce noise and preserve detail.
SMSL VMV D3R: Balanced DAC
The SMSL VMV D3R is built around two ROHM BD34302EKV DACs and an XMOS XU316 USB interface, offering support for high-resolution audio streams up to 32-bit/768kHz PCM and DSD512. These DAC chips are renowned for their natural sound signature, dynamic range, and wide soundstage.

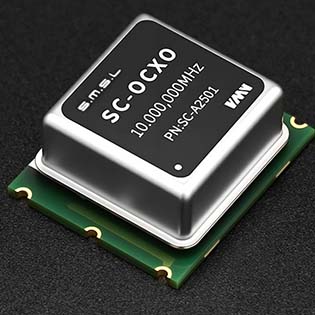

SMSL VMV D3R: Optimized clock
Un oscillateur OCXO 10MHz et un circuit d'horloge CK-04 offrent une réduction du jitter et du bruit de phase pour un traitement du signal précis, résultant en une image sonore claire et précise.

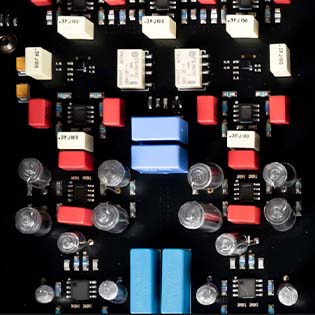

SMSL VMV D3R: Analog volume control
The volume control is handled by a fully balanced analog circuit, preserving signal integrity and avoiding any added distortion.

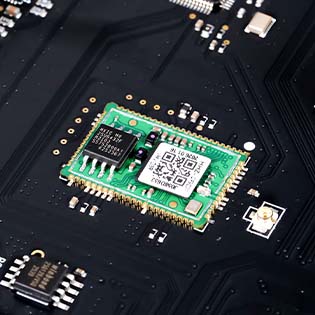

SMSL VMV D3R: Bluetooth LDAC
Equipped with a Qualcomm Bluetooth chip, the SMSL VMV D3R supports high-resolution codecs: SBC, AAC, aptX, aptX HD and LDAC (24bit 96kHz). This feature provides a fast and convenient wireless connection without compromising signal quality.

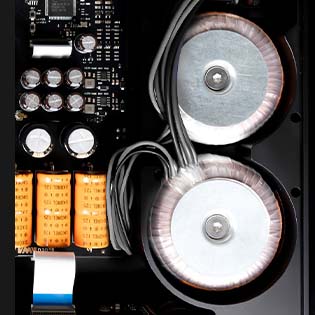

SMSL VMV D3R: Dual toroidal transformers
The digital and analog circuits are powered independently thanks to two toroidal transformers. This avoids interference between circuits and ensures improved signal processing stability.

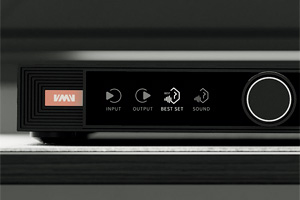

SMSL VMV D3R: A polished interface
The SMSL VMV D3R features a brand-new, clear, and user-friendly interface. It offers convenient features such as lyrics synchronization and the display of track information during Bluetooth playback.
In addition, this device offers a sound profile called “Best Set,” which allows you to automatically configure filter slopes, sampling rates, and gain compensation with a single tap.

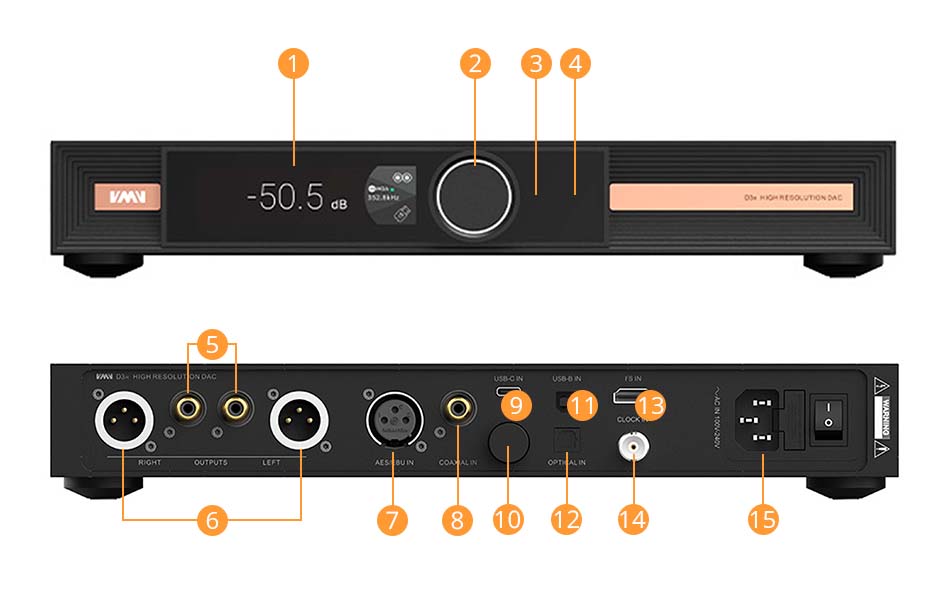

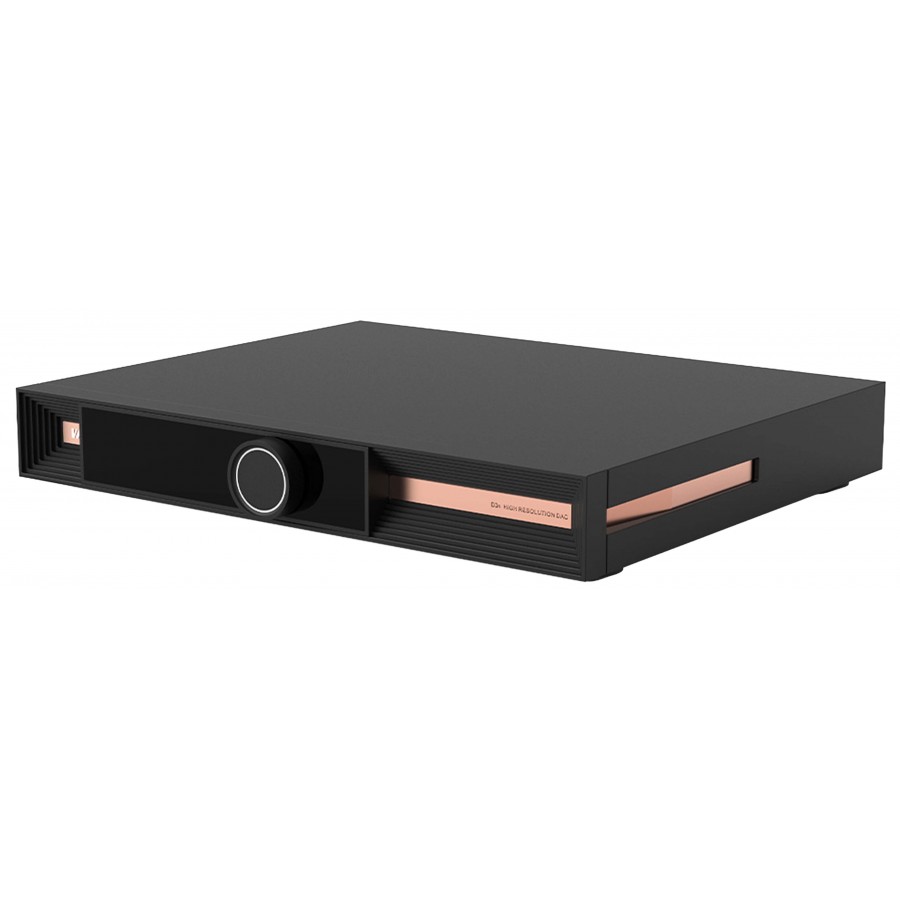

Overview of the SMSL VMV D3R
| 1 | Display |
| 2 | Multifunction button |
| 3 | IR receiver |
| 4 | LED indicator |
| 5 | Single-ended RCA output |
| 6 | Balanced XLR output |
| 7 | AES/EBU input |
| 8 | Coaxial input |
| 9 | USB-C input |
| 10 | Bluetooth antenna |
| 11 | USB-B input |
| 12 | Optical Toslink input |
| 13 | I2S input via HDMI |
| 14 | External clock input |
| 15 | AC power input |
Technical specifications
| Specifications | |
|---|---|
| Product type | DAC |
| DAC chip | 2x ROHM BD34302EKV |
| Inputs | 1x USB-C 1x USB-B 1x I2S via HDMI 1x Optical Toslink 1x Coaxial 1x AES/EBU |
| Outputs | 1x Single-ended RCA 1x Balanced XLR |
| Supported sampling rates | USB, I2S via HDMI: PCM up to 32bit 768kHz, DSD up to DSD512 Optical Toslink, coaxial, AES/EBU: PCM up to 24bit 192kHz, DSD DoP64 |
| MQA decoder | USB, Optical Toslink, coaxial, AES/EBU |
| Output level | RCA: 2.5Vrms XLR: 5.2Vrms |
| THD+N | RCA: 0.00013% (-117dB) XLR: 0.00017% (-115dB) |
| Dynamic range | RCA: 122dB XLR: 123dB |
| SNR | RCA: 122dB XLR: 123dB |
| USB transmission | Asynchronous |
| USB compatibility | Windows 7/8/8.1/10/11 (with driver) Mac OSX 10.6 and above, Android, iOS, Linux (driverless) |
| Supported Bluetooth codecs | Bluetooth 5.4: SBC, AAC, aptX, aptX HD, LDAC |
| General | |
|---|---|
| Power supply | 100-240V AC |
| Power consumption | < 30W |
| Dimensions | 320 x 51.5 x 280.9mm |
| Weight | 3.81kg |
| Package | 1x SMSL VMV D3R 1x Remote control 1x AC power cable |
