SMSL H300 Headphone Amplifier / Balanced Preamplifier 10W 16 Ohm

SMSL H300 Préamplificateur symétrique / Amplificateur casque 10W 16 Ohm
The SMSL H300 features both headphone amplifier and balanced preamplifier functions. It is capable of driving a large number of headphones, thanks to its output power of 10W @ 16Ω and 5W @ 32Ω. Its amplifier stage incorporates 64 mini OPAs. This headphone amplifier has a balanced design and very low distortion and noise levels. It can also be used as a balanced preamplifier, thanks to its XLR output. Its minimalist, compact design makes it the perfect ally for your desktop audio system.

No customer reviews yet, login to write a review.

By buying this product you get 31 loyalty points


Yes, notify me when available !
Reference : 17851
New product

319,00 €tax incl.

265,83 € tax excl.
Including 0,05 € for green tax

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

SMSL H300

Amplificateur casque / Préamplificateur symétrique 10W 16 Ohm

SMSL H300 Amplificateur casque / Préamplificateur symétrique 10W 16 Ohm

The SMSL H300 performs the functions of a balanced headphone amplifier and preamplifier. It is capable of driving a wide range of headphones, thanks to its output power of 10W at 16Ω and 5W at 32Ω. Its amplifier stage incorporates no fewer than 64 mini OPAs. This headphone amplifier has a balanced design and very low distortion and noise levels. It can also be used as a balanced preamplifier thanks to its XLR and RCA outputs. Its sober, compact design makes it the perfect ally for your desktop audio system.

SMSL H300 Amplificateur casque / Préamplificateur symétrique 10W 16 Ohm

A high-performance balanced amplifier stage

Its fully balanced audio circuit incorporates 4 low-distortion linear feedback loops. Each channel has 32 low-noise mini OPAs. This is where the H300 gets its high output power (10W into 16Ω and 5W into 32Ω).

It also features three different headphone outputs: a balanced 4.4mm jack, a balanced 4-pin XLR and a single-ended 6.35mm jack. This allows it to adapt to the vast majority of headphones and IEMs available on the market.

SMSL H300 Amplificateur casque / Préamplificateur symétrique 10W 16 Ohm
SMSL H300 Amplificateur casque / Préamplificateur symétrique 10W 16 Ohm

An efficient interface with optimized gain levels for headphones

The H300's interface is simple and effective. It uses toggle switches and a volume potentiometer. The main options are the selection of input (RCA / XLR) and output (headphone amplifier / preamplifier).

SMSL has also equipped the H300 with a 3-position gain control (Low / Mid / High) allowing you to adapt the output level to your listening equipment and its requirements.

On balanced outputs, the gain values are as follows:
Low -6dB / Medium 6dB / High 24.5dB.

On the single-ended 6.35mm jack output, gain values are as follows:
Low -11.5dB / Medium 0dB / High 18.5dB.

SMSL H300 Amplificateur casque / Préamplificateur symétrique 10W 16 Ohm

A high-performance, ultra-low-noise power supply system

The H300 by SMSL incorporates an ultra-low-noise power supply module specially designed by SMSL. The power supply also incorporates an overvoltage and overload protection system.

A relay system also suppresses any noise caused by input/output changes during playback or start-up for a clean, smooth listening experience.

SMSL H300 Amplificateur casque / Préamplificateur symétrique 10W 16 Ohm

Compact design

The proportions of the H300 housing make it an ideal companion for your desktop HiFi system. The use of an aluminum chassis limits the appearance of noise by blocking interference. The SMSL H300 can therefore share its environment easily with other HiFi devices.

SMSL H300 Amplificateur casque / Préamplificateur symétrique 10W 16 Ohm

Technical characteristics

Specifications
Product typeHeadphone amplifier
Balanced preamplifier
Inputs1* Single-ended stereo RCA
1* Balanced stereo XLR
Outputs1* Jack 4.4mm balanced headphone output
1x XLR 4 pins balanced headphone output
1* Jack 6.35mm single-ended headphone output


1* Single-ended stereo RCA output
1* Balanced stereo XLR output
Output power2x 10W @ 16Ω
2x 5W @ 32Ω

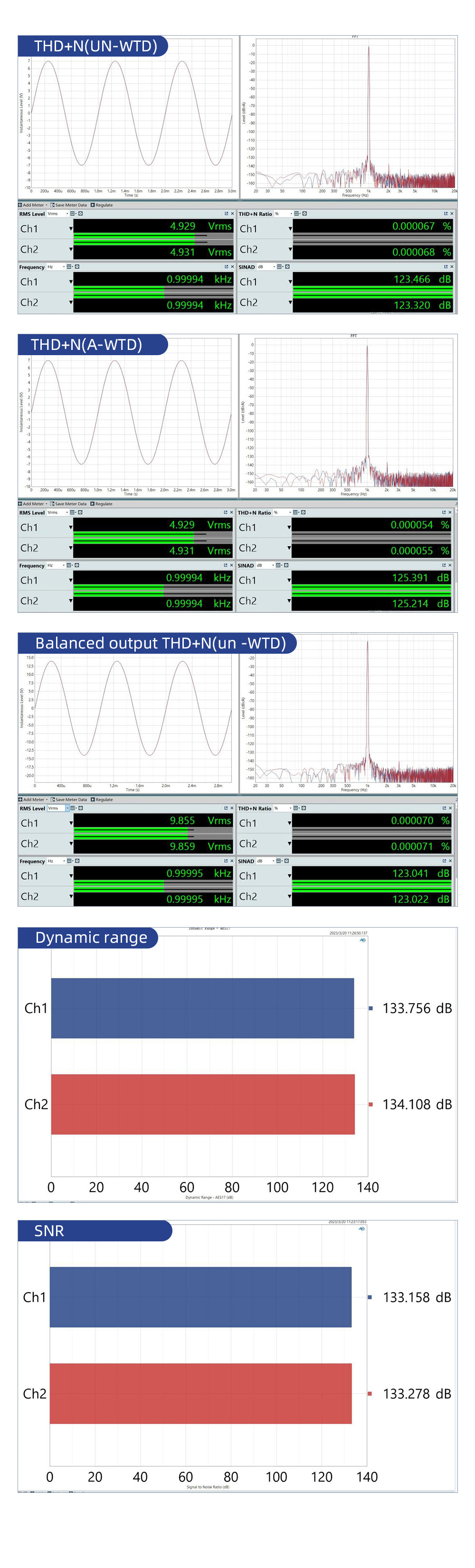

SNR133dB
Dynamic range133dB
THD+N-123dB 0.00006% (@ 32Ω, 1kHz)
Input impedance47Ω
Headphone output impedanceNEar 0Ω
Preamplifier output impedanceXLR: 44Ω
RCA: 22Ω
Frequency response20Hz - 100kHz (-0.5dB)
GainSingle-ended Jack 6.35mm headphone output: Low -11.5dB / Medium 0dB / High 18.5dB
Balanced Jack 4.4mm / XLR 4 pins headphone outputs: Low -6dB / Medium 6dB / High 24.5dB
Hi-res Audio certification
General
Power supplyAC 100-240V
Power consumption< 50W
Dimensions210*40*178mm
ColorBlack
Weight1.23Kg
Package1* SMSL H300
1* Power cable
SMSL H300 Amplificateur casque / Préamplificateur symétrique 10W 16 Ohm

Data sheet
InputRCA
InputXLR
OutputRCA
OutputJack 6.35mm
OutputXLR
OutputJack 4.4mm
ColorBlack
ClassN/A
Remote ControlNo
