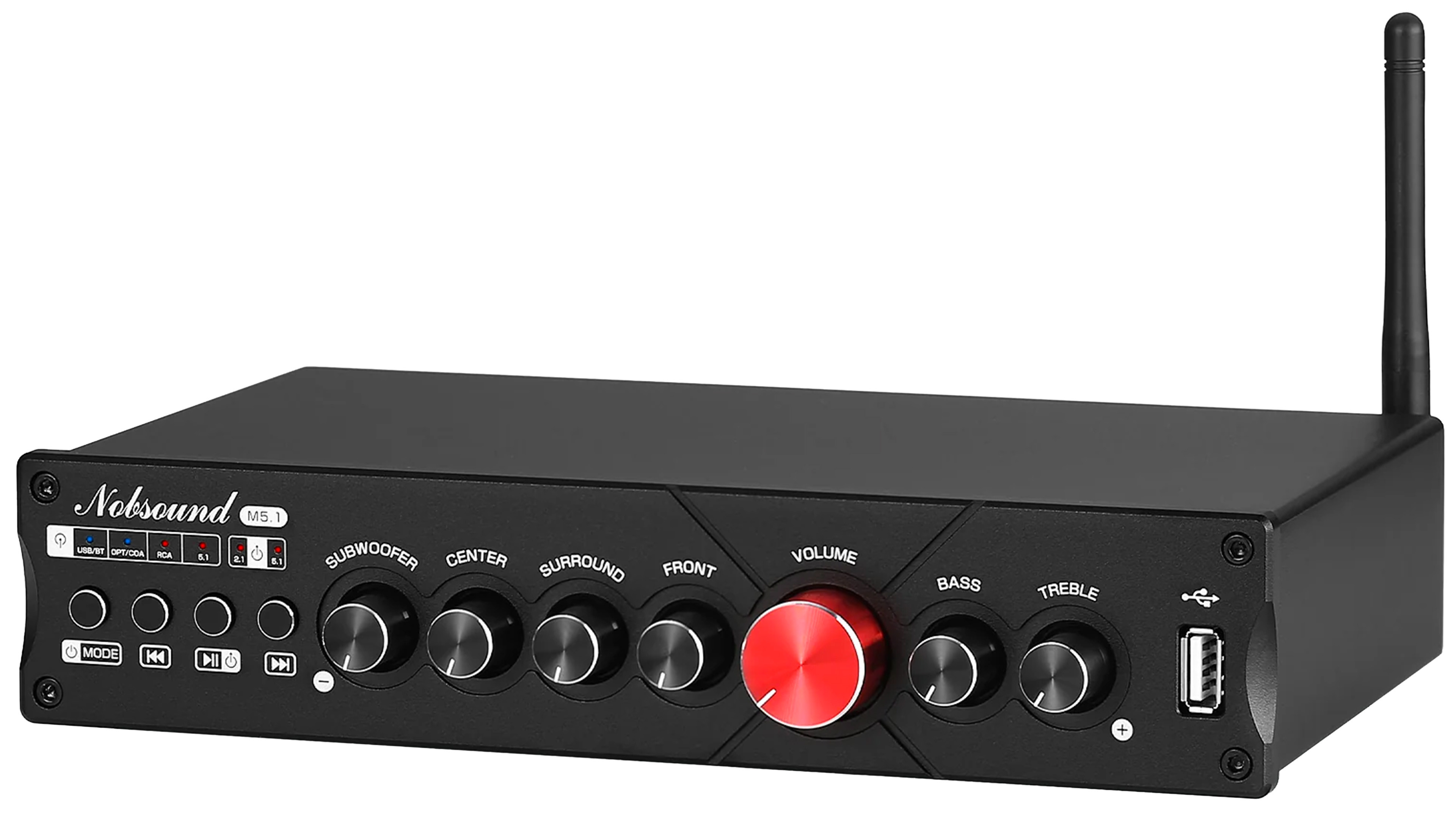

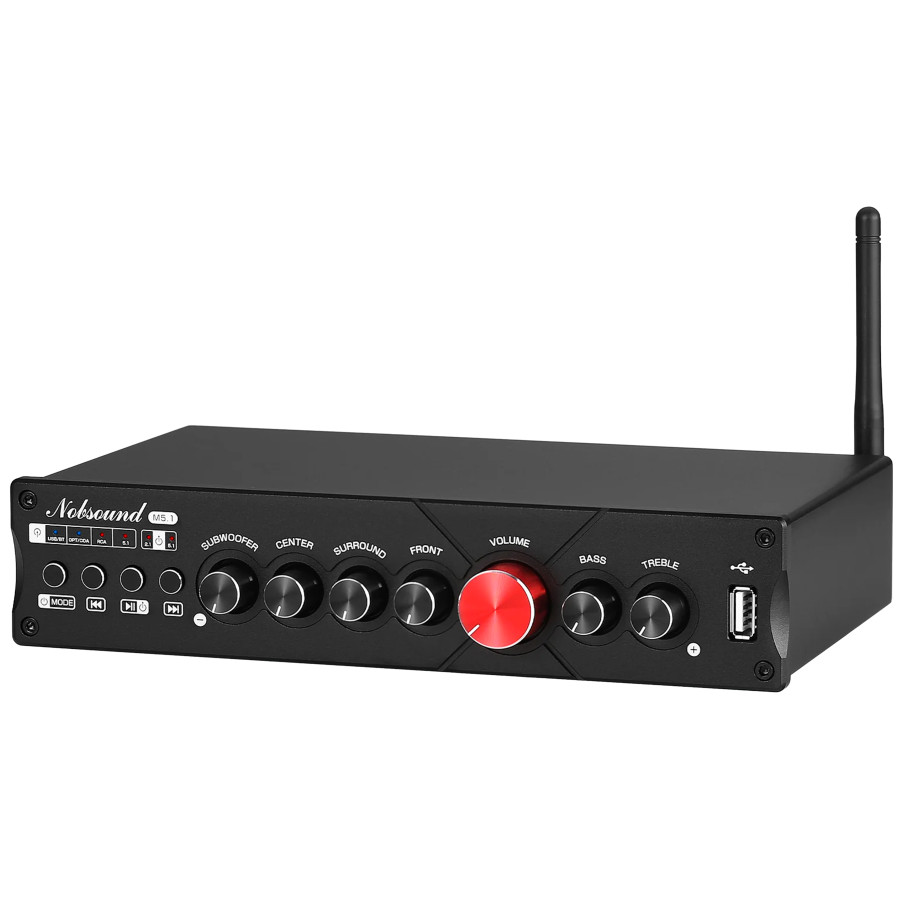

NOBSOUND M5.1 5.1 Amplifier TPA3116 6x50W 4 Ohm

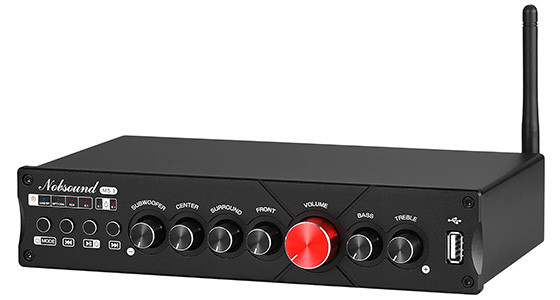

The Sobsound M5.1 is a multichannel home cinema amplifier equipped with three TPA3116 circuits, delivering up to 50 W per channel to drive the front, surround, center speakers and the subwoofer. Its integrated audio processing supports 2.0, 2.1, 2.2, 5.1 and 5.2 configurations, while allowing a stereo source to be distributed across a 5.1 output.
Designed for compact and versatile installations, it combines Bluetooth 5.0, optical, coaxial, USB, RCA 2.0 and RCA 5.1 inputs with independent adjustments for each group of channels. This architecture makes it easy to integrate various sources and allows the front stage, surround channels, center channel and bass to be adjusted separately according to the configuration used.
Sobsound M5.1: Amplification by TPA3116 chips
The Sobsound M5.1 is a home cinema amplifier equipped with three TPA3116 circuits, each assigned to a part of the sound stage. This architecture delivers up to 50 W + 50 W for the front channels, 50 W + 50 W for the surround channels, as well as 50 W for the center channel and 50 W for the bass channel, allowing a complete 5.1 configuration to be driven.
Sobsound M5.1: 2.0 to 5.2 configurations
Thanks to its integrated multichannel processing, the M5.1 supports 2.0, 2.1, 2.2, 5.1 and 5.2 configurations. Its processing mode also allows a stereo input signal to be distributed across a 5.1 output, in order to create a wider sound stage from a 2.0 source.

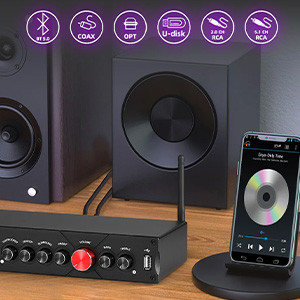

Sobsound M5.1: Extended audio connectivity
The Sobsound M5.1 combines Bluetooth 5.0 reception with coaxial, optical, USB (for U-disk) inputs, RCA 2.0 channel and RCA 5.1 channel inputs. This connectivity allows the connection of televisions, media players, computers, smartphones or consoles, while the USB input supports the playback of audio files such as MP3, WAV, APE and FLAC.

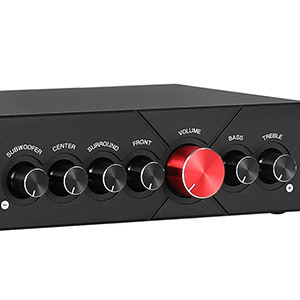

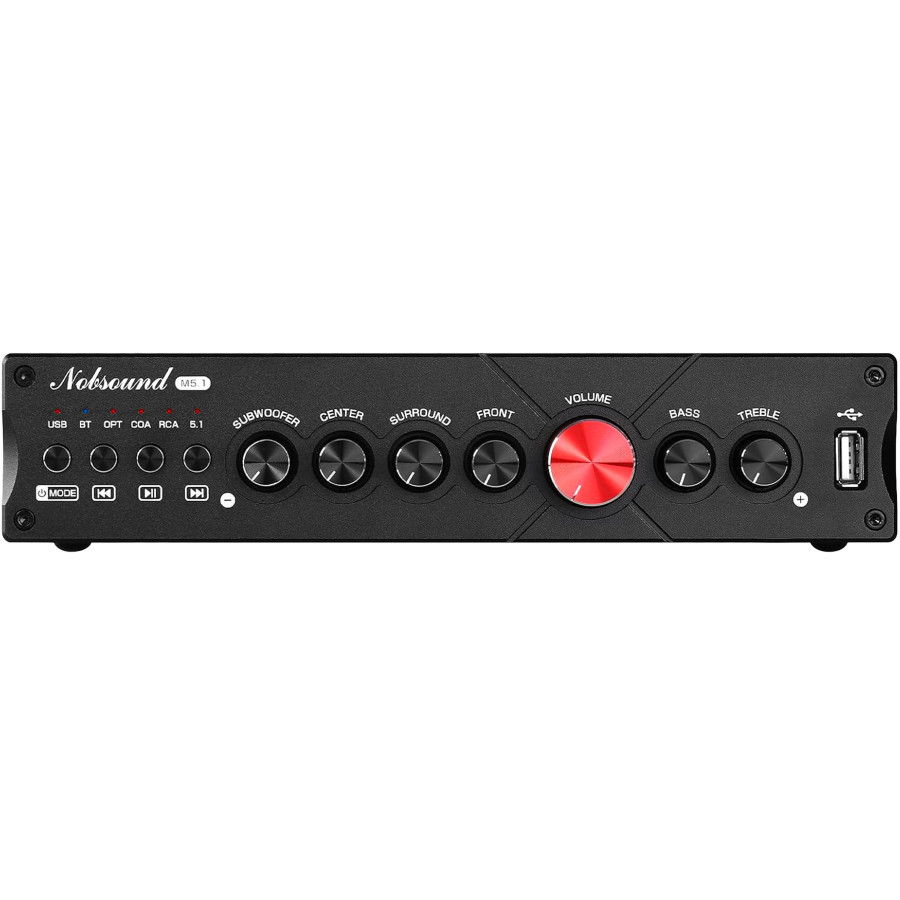

Sobsound M5.1: Independent adjustments
The main audio parameters have separate controls to precisely adapt the output to the installation. The overall volume, bass and treble are adjustable independently, while the levels of the front, surround, center and bass channels can be adjusted separately to balance the sound stage.

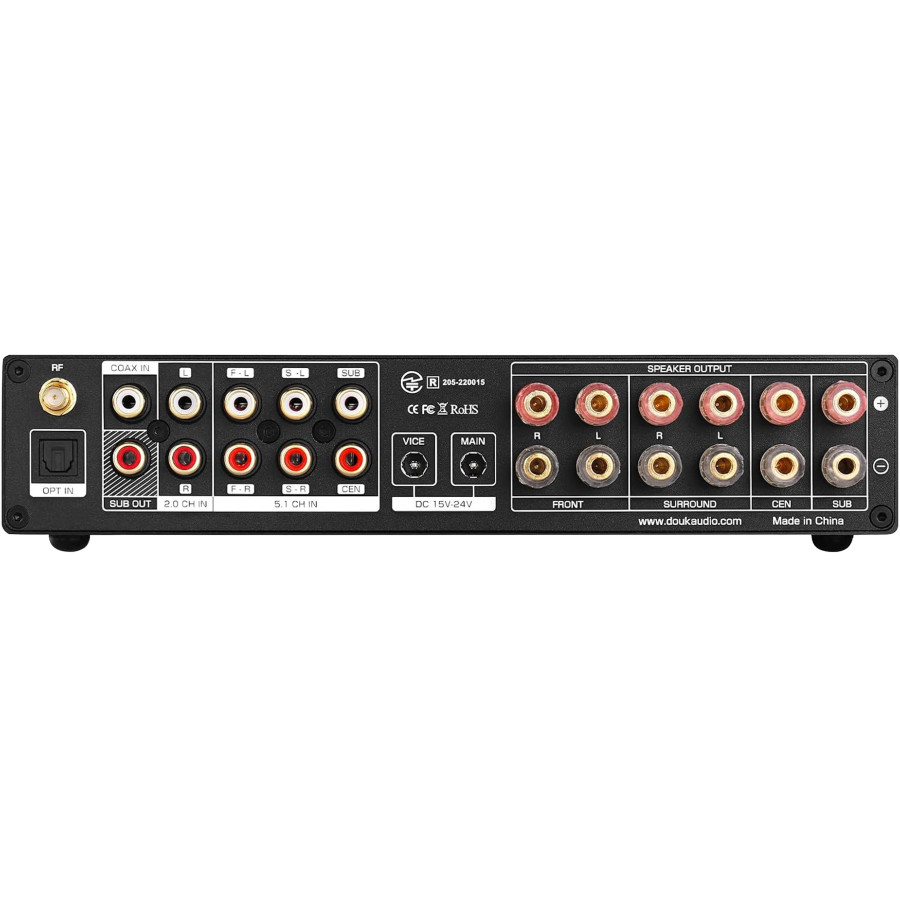

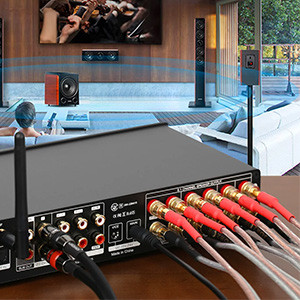

Sobsound M5.1: Outputs and system integration
The rear panel gathers the outputs dedicated to the front, surround and center speakers, as well as an output for an active subwoofer. The M5.1 can thus form the center of a compact multichannel system, with a power supply between 15 and 24 V DC and two power inputs provided for its operation.
Technical specifications
| Specifications | |
|---|---|
| Product type | Home cinema amplifier |
| Channels | 5.1 |
| Inputs | 1x RCA stereo 6x RCA 1x Coaxial 1x Toslink optical 1x USB-A Bluetooth |
| Outputs | Speaker terminals 1x SUB output |
| SNR | ≥100dB |
| Frequency response | 20Hz-20KHz (+1.5dB) |
| Power | 6x50W @4Ohm |
| Amplification chip | 3xTPA3116 |
| Amplification type | Class D |
| Input sensitivity | 0.775V |
| Total harmonic distortion (THD) | 0.05% @1kHz |
| Supported sample rates | USB: PCM 16bit 48kHz Bluetooth: PCM 16bit 48kHz Coaxial: PCM 24bit 192kHz Optical: PCM 24bit 192kHz |
| Supported file formats | MP3/WAV/APE/FLAC |
| General | |
|---|---|
| Supply voltage | 15-24V DC |
| Dimensions | 230 x 130 x 49mm |
| Weight | 1.19kg |
| Color | Black |
| Package | 1x Sobsound M5.1 1x 24V/6A power adapter 1x optical cable 1x Bluetooth antenna |
| Input | RCA |
| Input | Optical |
| Input | USB |
| Input | SPDIF |
| Input | Bluetooth |
| Output | Subwoofer |
| Output | Speaker terminal |
| Color | Black |
| Channel | 5.1 |
| Class | Class D / T |
| Amplifier chip | TPA3116 |
| Power (W) | 50.0 |
| Remote Control | No |
