EVERSOLO AMP-F10 Power Amplifier

New
Eversolo has designed the AMP-F10 class AB power amplifier to accompany its new streamer, the DMP-A10. This amplifier features a dual mono balanced architecture with no less than 5 MOSFET transistors per channel. This architecture gives it a substantial power reserve, as it is capable of developing up to 2x320W under 4 ohm and 2x200W under 8 ohm. Added to this is the possibility of bridging it in mono mode and achieving an output power of 950W at 4 ohms and 650W at 8 ohms. The AMP-F10 can therefore easily drive demanding loudspeakers with hard-to-move drivers.

No customer reviews yet, login to write a review.

By buying this product you get 257 loyalty points


Yes, notify me when available !
Reference : 20203
New product

2 579,00 €tax incl.

2 149,17 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Eversolo AMP-F10 Class AB Power Amplifier Dual Mono Balanced 2x320W 4Ω / 1x950W 4Ω

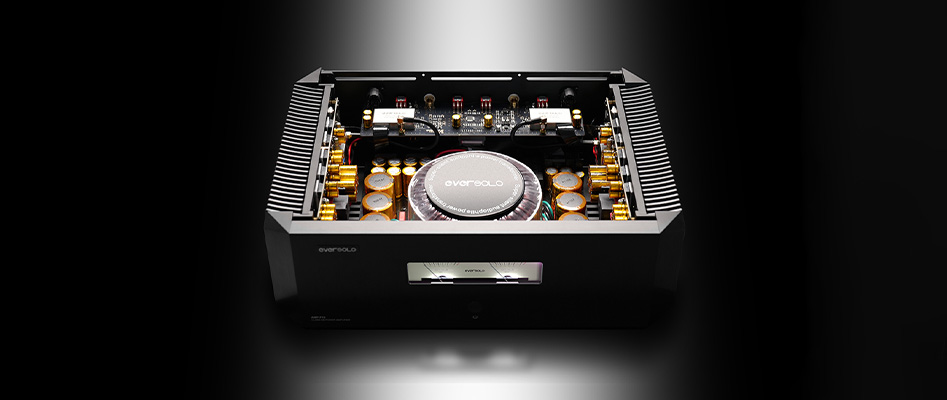

EVERSOLO AMP-F10 picture

Eversolo has designed the AMP-F10 class AB power amplifier to accompany its new streamer, the DMP-A10. This amplifier features a dual mono balanced architecture with no less than 5 MOSFET transistors per channel. This architecture gives it a substantial power reserve, as it is capable of developing up to 2x320W under 4 ohm and 2x200W under 8 ohm. Added to this is the possibility of bridging it in mono mode and achieving an output power of 950W at 4 ohms and 650W at 8 ohms. The AMP-F10 can therefore easily drive demanding loudspeakers with hard-to-move drivers.

In addition to this exceptional power, Eversolo has ensured ultra-clean sound reproduction with a THD level of just 0.008%, an SNR of 113dB for fine, detailed reproduction, and an extended frequency response of 10Hz-30Khz (8Ω).

In terms of connectivity, the AMP-F10 aims for simplicity and efficiency: a signle-ended RCA input and a balanced XLR input with output on speaker terminals. What's more, the AMP-F10's design matches the elegance of the DMP-A10, featuring two backlit vumeters on the front panel for a touch that's both classic and modern.

Eversolo AMP-F10: high-fidelity amplifier

The AMP-F10 uses dual differential amplifiers within a balanced circuit to handle low-level signals, limit distortion and extend its dynamic range. As a result, the AMP-F10 guarantees a faithful and coherent listening experience, whatever the volume level.

Le circuit d'amplification du AMP-F10
Des basses propres et intenses

Eversolo AMP-F10 : Power Bass

Capable of reproducing deep, punchy bass while retaining exemplary clarity and detail, the AMP-F10 adapts easily to different musical styles, delivering a reliable and emotionally engaging sound experience.

Eversolo AMP-F10: 5 MOSFET transistors per channel

Each channel of the amplifier is equipped with five carefully matched MOSFET transistors. These components ensure an ideal combination of power and stability, contributing to distortion-free sound reproduction.

Les transistors Mosfet du EVERSOLO AMP-F10

Eversolo AMP-F10: a filtered power supply

The components of this power amplifier have been chosen with meticulous care. Eversolo has left nothing to chance, including a linear power supply capable of delivering 1000W per channel thanks to its large toroidal transformer. This configuration avoids any interference between the two channels and delivers a clean current. What's more, this generous power output delivers impressive, immersive sound dynamics.

To protect the audio circuitry, a DC filter is placed between the main AC supply and the internal circuitry. This system effectively eliminates low-frequency DC interference, ensuring exceptionally pure power.

L'alimentation du EVERSOLO AMP-F10

AMP-F10 overview

Aperçu du EVERSOLO AMP-F10
1Balanced XLR input
2Single-ended RCA input
3Sensitivity switch : 29dB/23dB
4Operating mode switch: Bridge mono / Stereo
5Standby mode: Trigger / Signal
6Trigger in / out
7Right channel output on speaker terminal
8Left channel output on speaker terminal
9Power supply input / Fuse / Power switch
10Current selection switch 100-120 AC/220-240V AC

Technical characteristics

Specifications
Product typePower amplifier
ClassAB
Transistors5x MOSFET transistors (left channel)
5x MOSFET transistors (right channel)
Inputs1x Single-ended RCA stereo input
1x Balanced XLR stereo input
OutputSpeaker terminal output
Other connectorsTrigger in / out
Input sensitivity adjustment23dB/29dB
Output power2x 320W @ 4 ohm
2x 200W @ 8 ohm
2x 450W @ 2 ohm

1x 950W @ 4 ohm
1x 650W @ 8 ohm
THD+N0.008%
SNR200W @ 8Ω/1kHz
Gain 23dB : ≥ 113dB @A-wt
Gain 29dB : ≥ 110dB @A-wt
Frequency response10Hz-30kHz @ 8 ohm (±0.5dB)
Crosstalk200W @ 8ohm/1kHz ≤ -95dB
Input impedanceRCA : 10KΩ
XLR : 10KΩ
Input sensitivity (200W @ 8ohm/1kHz)RCA input gain 23dB: 2.65V
RCA input gain 29dB: 1.3V
XLR 23dB input gain: 5.2V
XLR 29dB input gain: 2.4V
Damping factor>600 @ 8ohm/1kHz
General
Power supply100-120V AC / 220-240V AC 50/60Hz (selector switch available on bottom of unit)
Net weight18Kg
Gross weight21.5Kg
ColorBlack
Dimensions430 x 310 x 147mm
Package1x Power amplifier AMP-F10
1x Trigger cable
1x Mains cable

Data sheet
InputXLR
InputRCA
OutputSpeaker terminal
ColorBlack
Channel1 (Mono)
ChannelDual Mono
Channel2 (Stereo)
ClassClass A / AB
Amplifier chipMOSFET
Power (W)320.0
Power (W)950.0
Remote ControlNo
