SMSL PH-1 Phono Preamplifier MM

New
The SMSL PH-1 is a phono preamplifier for MM turntables, providing a very accurate gain of 46dB to reach a signal level of 1Vrms at output, where most phono preamplifiers provide a gain of only 38-40dB for an output signal of just 300mW. This high gain brings better dynamics, and the overall structure of the device offers ultra-low distortion.

No customer reviews yet, login to write a review.

By buying this product you get 6 loyalty points


Yes, notify me when available !
Reference : 20777
New product

69,00 €tax incl.

57,50 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

SMSL PH-1 Phono Preamplifier MM

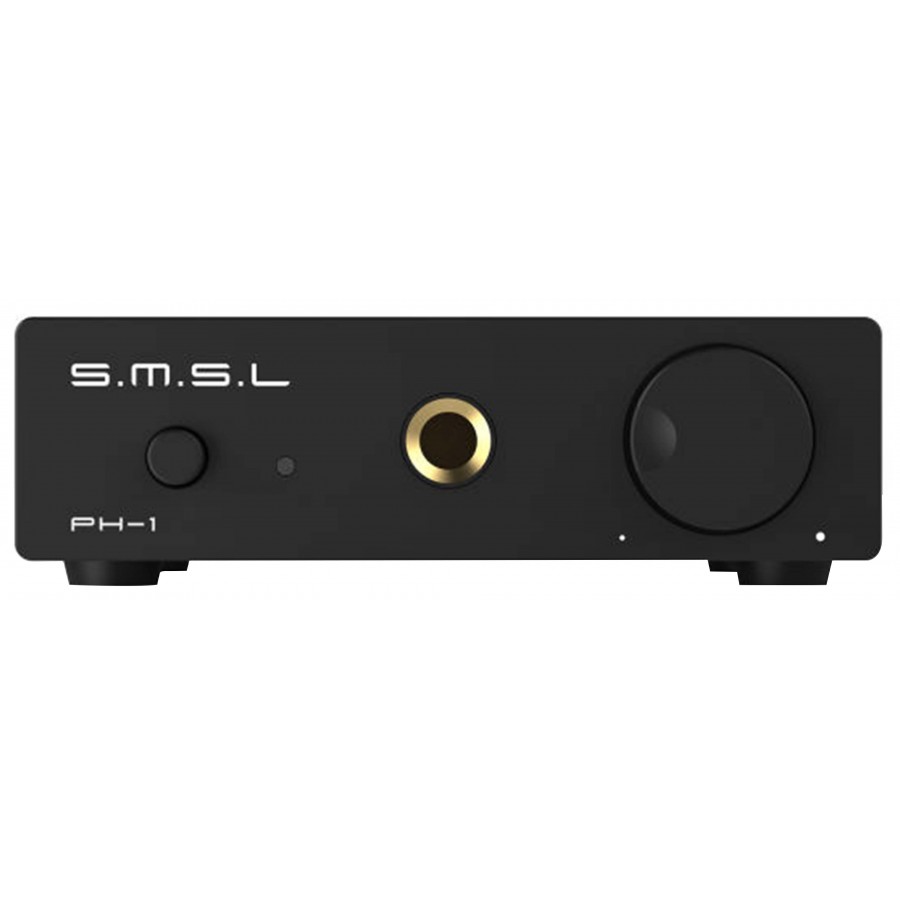

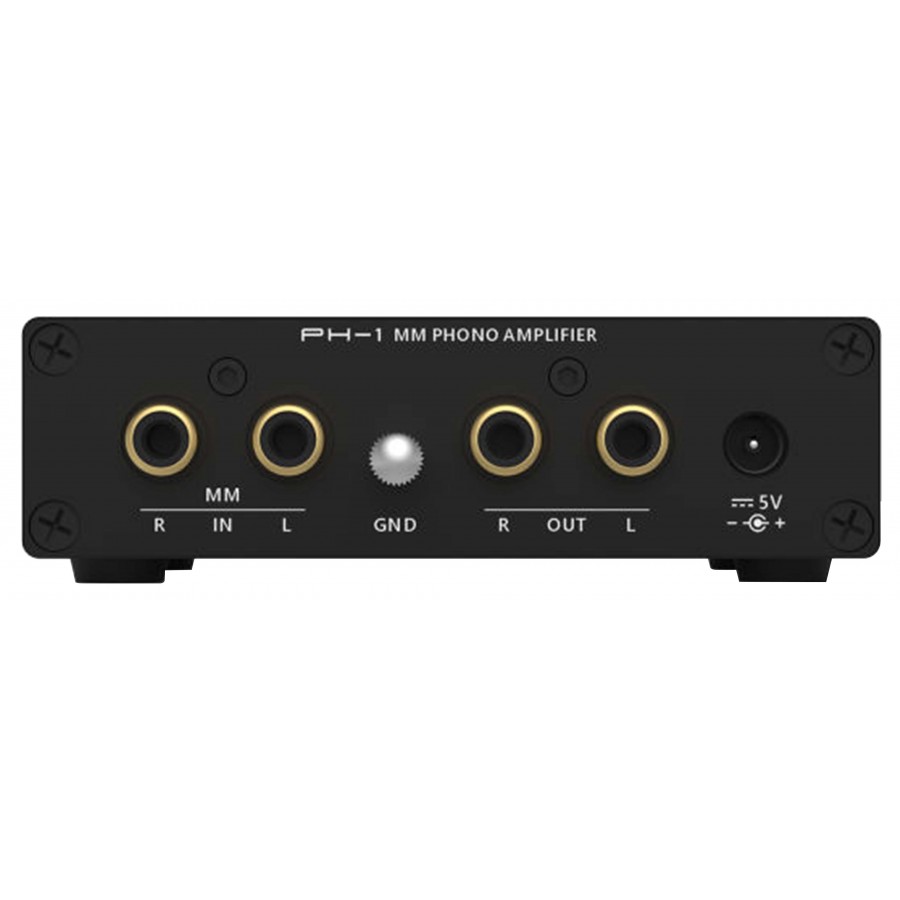

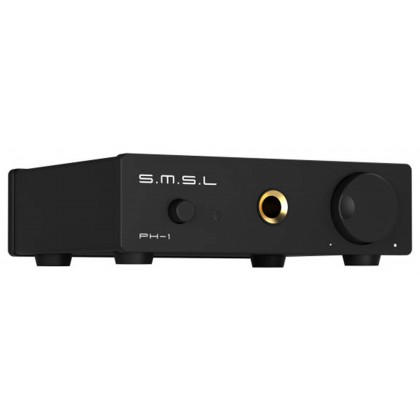

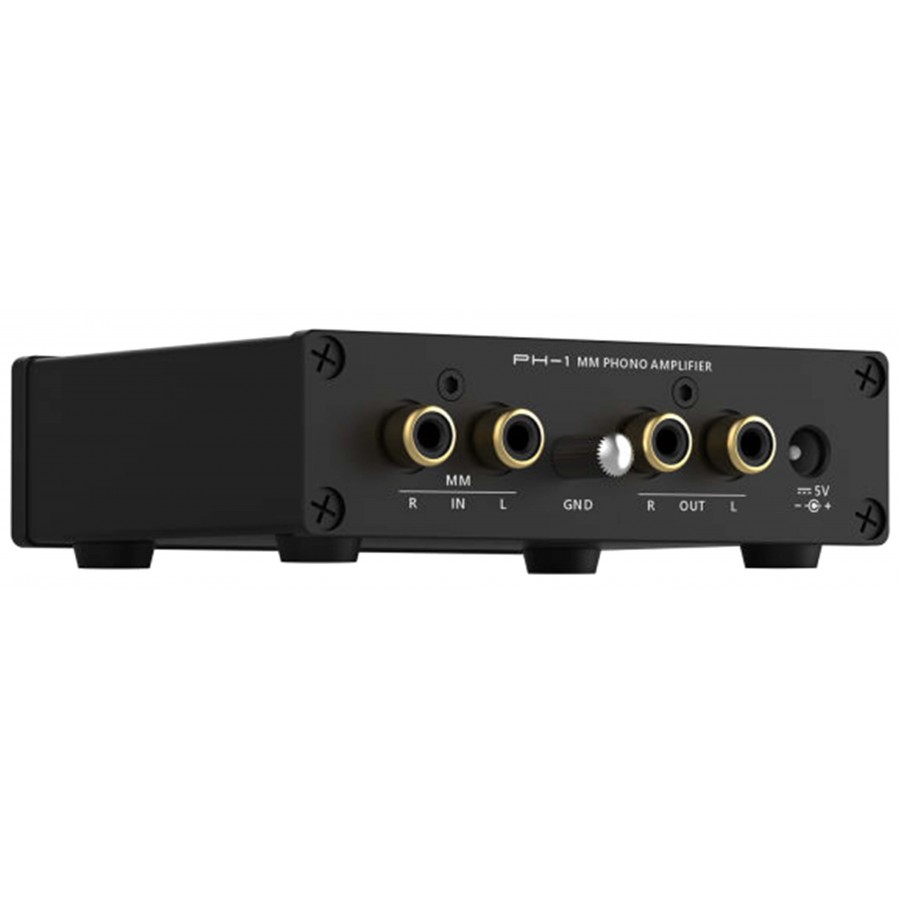

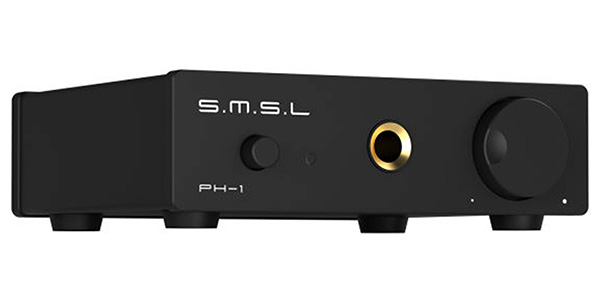

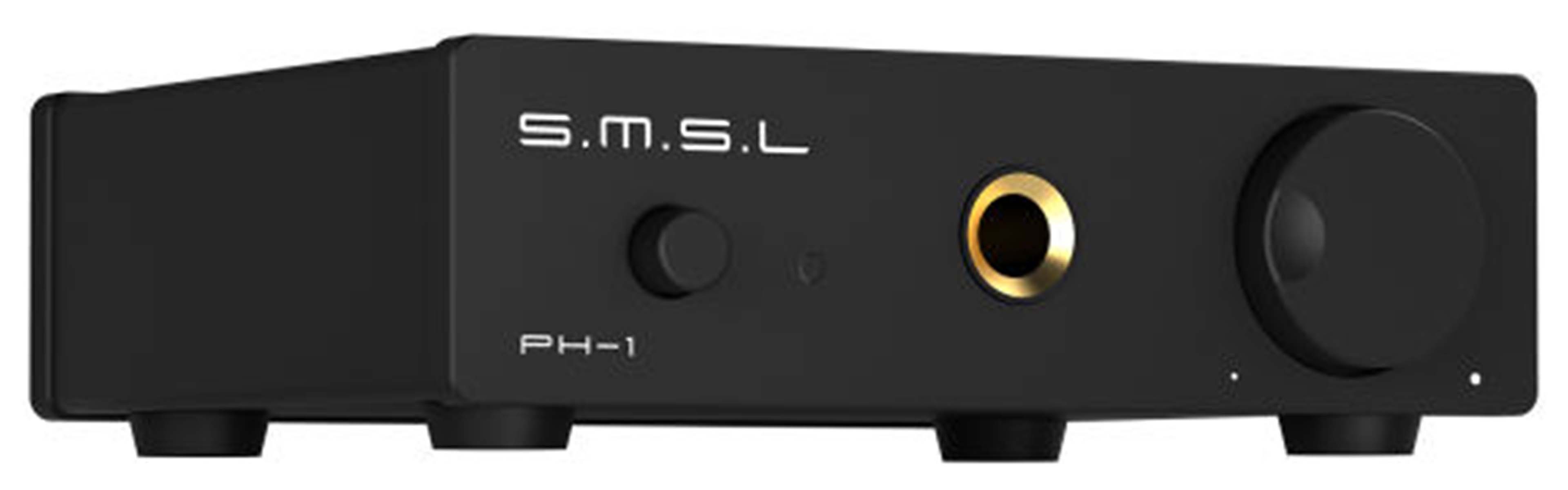

Photo of SMSL PH-1

The SMSL PH-1 is phono preamplifier for MM turntables, providing a very accurate gain of 46dB to reach a signal level of 1Vrms at output, where most phono preamplifiers provide a gain of only 38-40dB for an output signal of just 300mW. This high gain brings better dynamics, and the overall structure of the device offers ultra-low distortion. Added to this is a headphone amplifier circuit with a 6.35mm jack output on the front panel. The PH-1's rear-panel connectors include the essentials, with an MM phono input on RCA connectors and an RCA line output. The whole unit is powered by an isolated power supply circuit, avoiding all kinds of interference and guaranteeing clean, clear reproduction.

SMSL PH-1 highlights

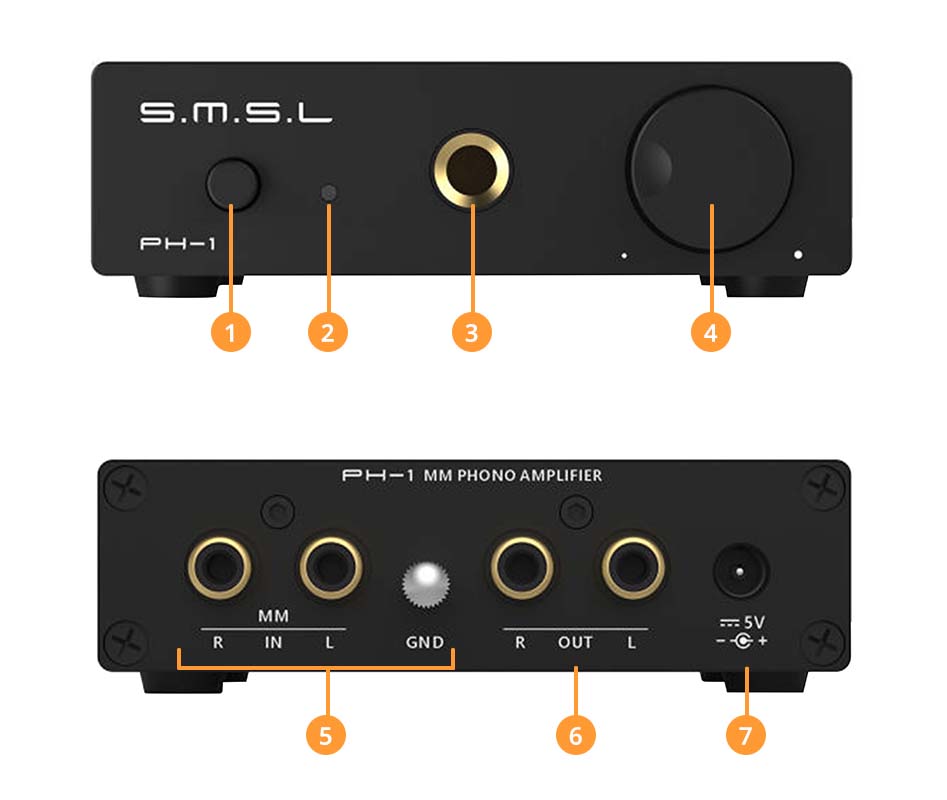

SMSL PH-1 overview

SMSL PH-1 overview
1ON/OFF button
2Status LED
36.35mm jack headphone output
4Headphone output volume control
5Phono RCA input
6RCA output
7DC jack connector for 5V power supply

Technical characteristics

Specifications
Product typePhono preamplifier
Input1x RCA phono
Outputs1x RCA line output
1x 6.35mm jack headphone output
Headphone output power2x 90mW @ 32 ohm
Frequency response20Hz-20kHz
THD+N0.008%
Chanel separation-77dB (1kHz)
Gain46dB
SNR84dB
General
Power consumption1W
Power supply5V DC 500mA
Dimensions94 x 30 x 96mm
Weight0.205kg
Package1x SMSL PH-1 phono preamplifier

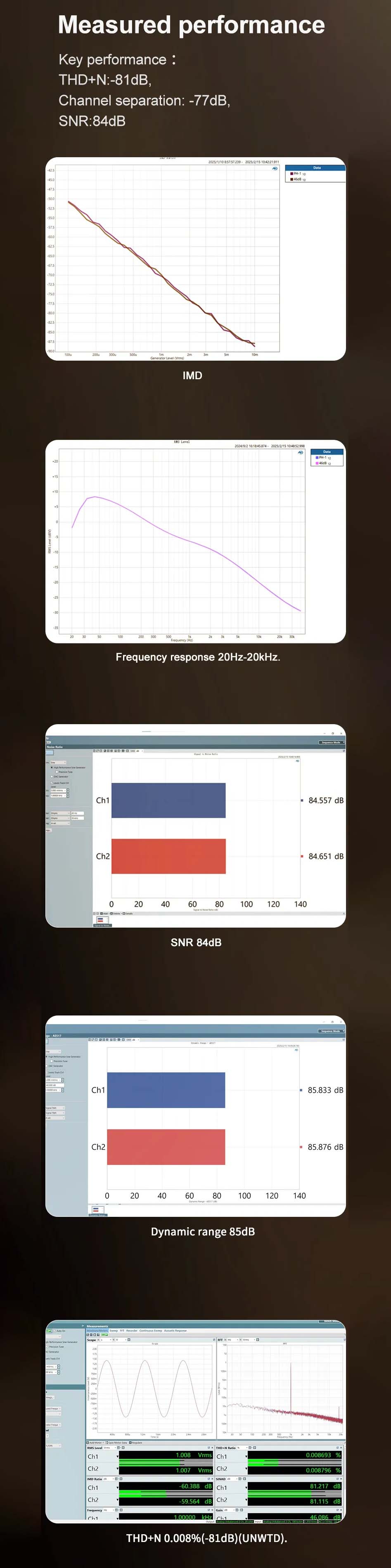

SMSL PH-1 measurements

Data sheet
InputPhono
OutputJack 6.35mm
OutputRCA
ColorBlack
ClassN/A
Remote ControlNo
