Audiophonics MPA-S250NC test by Audio Science Review

Posté le 2024-03-20 Tests & reviews, HiFi Tests 1591
MPA-S250NC picture

Discover Audio Science Review's test of the MPA-S250NC power amplifier. This power amplifier, available in RCA and XLR versions, is a Class D stereo amplifier based on a Hypex Ncore NC252MP module. This module enables it to develop a power of up to 2x 250W at 4 ohms and 2x 150W at 8 ohms, offering a considerable power reserve while maintaining a THD+N of 0.0015% and an efficiency of 92%. The whole unit is powered by an SMPS power supply integrated into the NC252MP module for stable, clean current. Connections include speaker terminals on the output, a 12V trigger on a 3.5mm jack, and a choice of RCA or XLR input depending on the version.

Complete Audiophonics MPA-S250NC test by Audio Science Review (Amir)

Audio Science Review logo
MPA-S250NC RCA picture

AUDIOPHONICS MPA-S250NC RCA

Class D Stereo Amplifier Ncore NC252MP 2x250W 4 Ohm

Discover the MPA-S250NC RCA
MPA-S250NC XLR picture

AUDIOPHONICS MPA-S250NC XLR

Class D Stereo Amplifier Ncore NC252MP 2x250W 4 Ohm

Discover the MPA-S250NC XLR

Key points from Audio Science Review's test of the MPA-S250NC

MPA-S250NC measurement dashboard

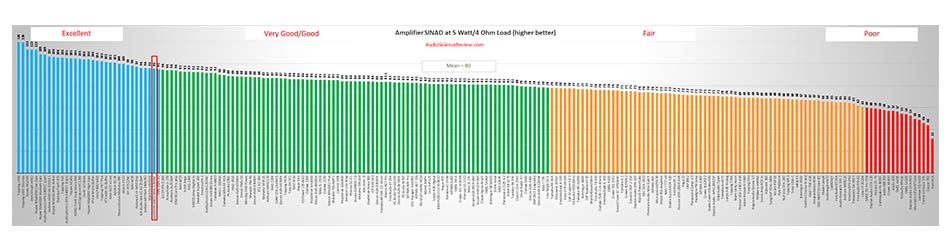

In terms of noise and distortion (SINAD), the MPA-S250NC is well above average.

MPA-S250NC measurement dashboard
MPA-S250NC rating

MPA-S250NC SNR

Noise performance is excellent.

MPA-S250NC SNR

MPA-S250NC frequency response

A flat curve over the audible frequency range and no load dependency, which is very good for a Class D amplifier.

MPA-S250NC frequency response

Crosstalk of the MPA-S250NC

Very good performance, despite the fact that both channels are handled by the same module.

MPA-S250NC Crosstalk

MPA-S250NC power VS distortion

Very low noise and distortion for a maximum power of 190W.

Power VS distortion of the MPA-S250NC

MPA-S250NC max. power @ THD+N=1%.

Significant power, approaching the announced power.

MPA-S250NC max. power @ THD+N=1%

MPA-S250NC protections

Effective at 4 and 8 ohm loads, but ineffective at 2 ohm.

MPA-S250NC protections

MPA-S250NC, an attractive, user-friendly amplifier

The amplifier is fairly light and compact for the level of power it offers. The power switch is pleasant to use, and the quality of the rear connectors rivals many more expensive amplifiers.

Front view of the MPA-S250NCPhoto of MPA-S250NC interior

Conclusion of the Audiophonics MPA-S250NC test by Audio Science Review (Amir)

"Audiophonics has produced one adorable stereo amplifier! I just want to sit there and look at it. Fortunately beauty goes beyond the skin, sporting a performance Hypex class D amplifier, producing top class results in all the measurements. You get near state of the art performance at bargain prices with scant space needed to dedicate to the amplifier."
